Ford Ranger Super Duty – Thor Airbag Suspension
*General concensus of Ranger Super duty is that the Parabolic leaves are too soft for either load carrying or towing*
Thor Air Bellows are Australian Made Airbag Suspension to give leaf sprung vehicles an air adjustable rear suspension.
- Suits Ford Super Duty.

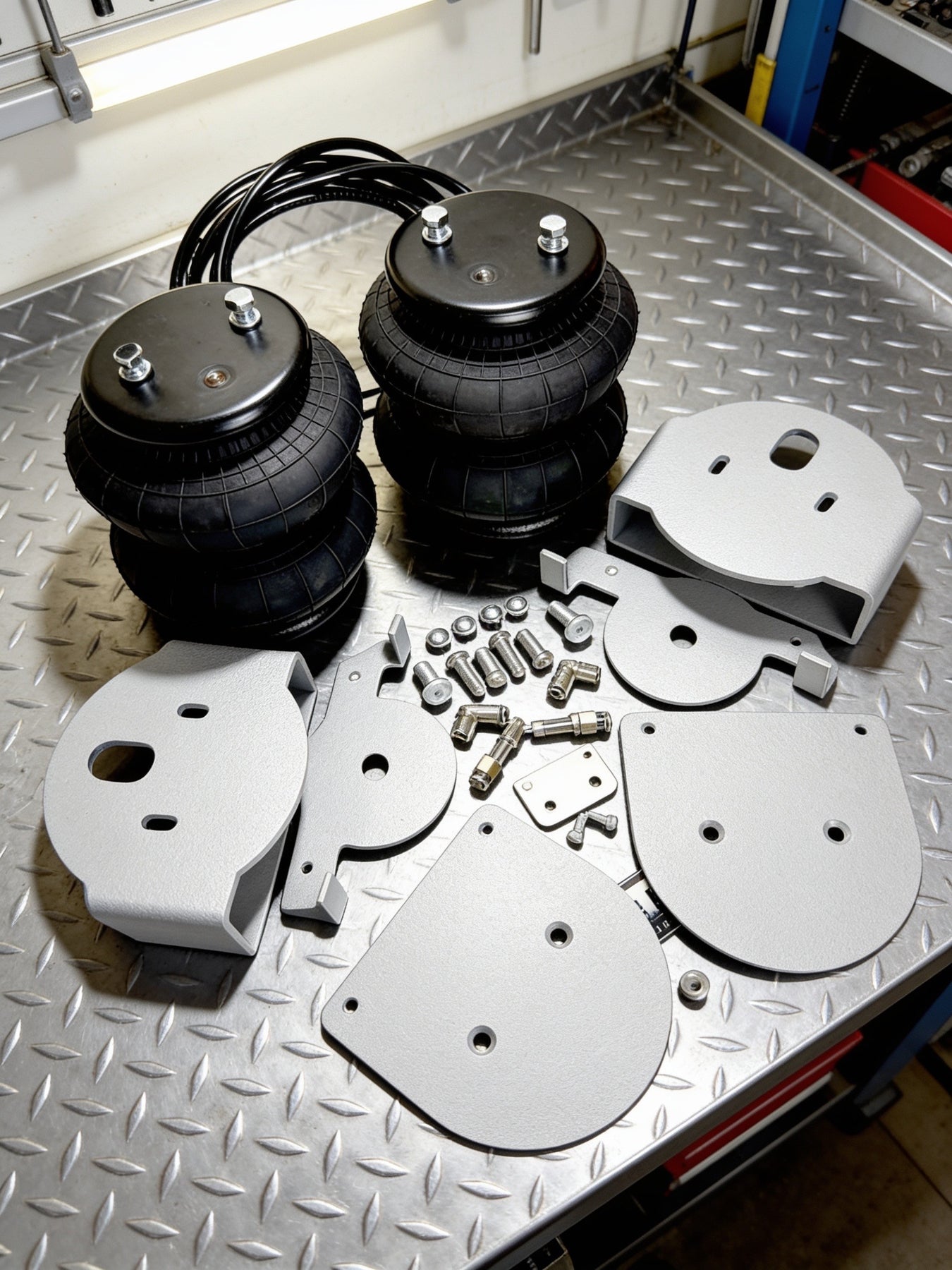

The Air Bags/Bellows Kit come with:
The Thor inflation Bellows kit gives leaf sprung vehicles an air adjustable rear suspension. This makes the vehicle safer when loaded by keeping the front wheels in contact with the road, eliminating sway and improving cornering (wet or dry).
Australian made heavy duty engineered 6mm steel brackets, laser cut (not stamped)
Mig welded and Zinc plated for long lasting rust protection. 5mm thick corded rubber air bellows from imported materials and built in Australia.
5.5 inches of travel
Working pressure 0-160psi
This load assist product gives leaf sprung vehicles an air adjustable rear suspension.
These Airbag Kits simply bolt on and when filled with air, raises the rear end (when under load) to make the vehicle level again. Government certified 435psi (bellows) and 5.11ton (Brackets)
These Air Bellows:
They are tested to ADR standards. Thor Air Bellows are rated to 2.4 tonnes which is in excess of manufacturers/authorities’ requirements.
Built to withstand Australia’s harsh road conditions. Thor air bellows are a must for the 4wd enthusiasts and vehicle towing travelers.
Most items are shipped domestically via Australia Post.
We ship to the "Shipping Address" provided on your order, 4WD World is not responsible for reshipping orders at our expense if incorrect details are provided.
Whilst 4WD World will not be held responsible for any orders lost by the postal service, we will make every attempt to get your package to you in a safe and timely manner and will assist with tracking.
While we maintain high stock levels, there may be instances where an item is out of stock. If we are unable to fill an order we will make contact with you within one business day of the order being placed and you can choose to place the item on back order, replace with items that are in stock or cancel the order and be refunded.
If you would like more information feel free to call our team - we are happy to assist : Ph 1800 807 176
or Email us: info@4wdworld.com.au
looks the goods
I used 2 jacks one to support the Axel and the other under the tow bar so I could set the bellows in the exact position for marking the holes for the top bracket centre punch the marks because with the limited space between the chassis and the spring pac the drill bit wants to wander around or hire a right angle drill , all the parts fitted like a glove and hoses did not leak
These suit my purpose perfectly. I carry all my work tools in the back of my dual cab Ute 5 days a week. To upgrade my springs would make my unloaded rear suspension to stiff. These airbags give me an adjustable ride height which is all I need. 40psi when I’m loaded and 25 to 30psi unloaded.
The kit supplied looks great .
Will fit them on my Xmas holidays.
Great service from these guys - good delivery time ! Highly recommend 4WD World.. Thank you!
